Description
| Model | Product Dimension (L X W X H) (mm) |
Packing Dimension (L X W X H) (mm) |
Weight (kg) | Gas Consumption Btu/Hr (MJ/Hr) |
Gas Pressure | Burner Type |
|---|---|---|---|---|---|---|

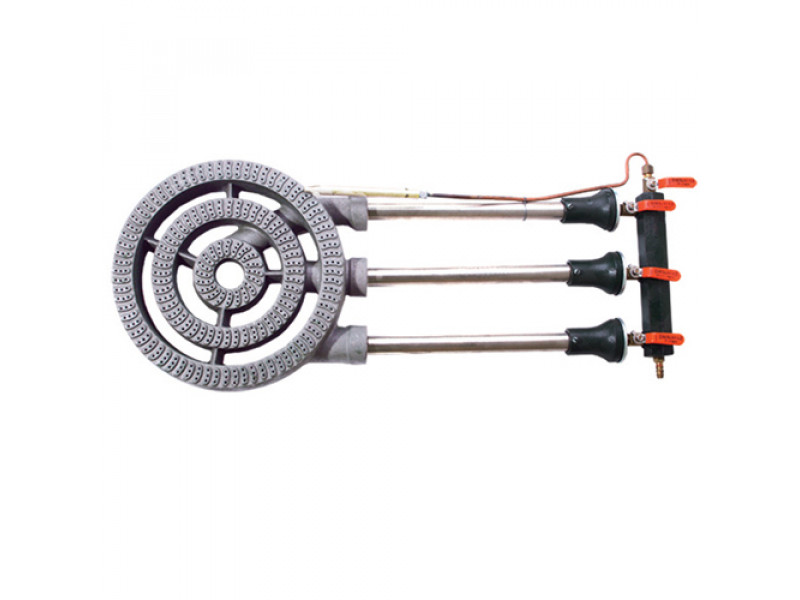

| SP 1 | 600 x 600 x 520 | 655 x 750 x 350 | 40 | 56,000 (59) | LOW | Ring |

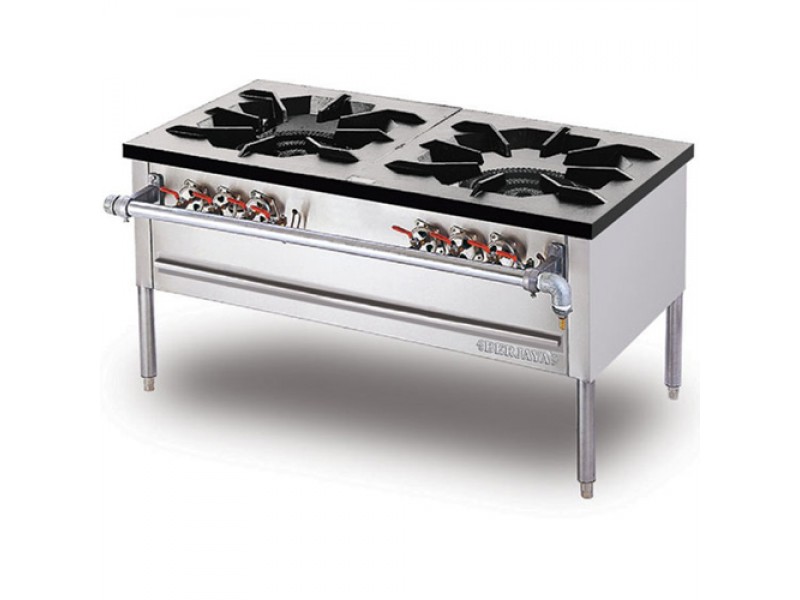

| SP 2 | 1200 x 600 x 520 | 1220 x 750 x 350 | 79 | 112,000 (118) | LOW | Ring |

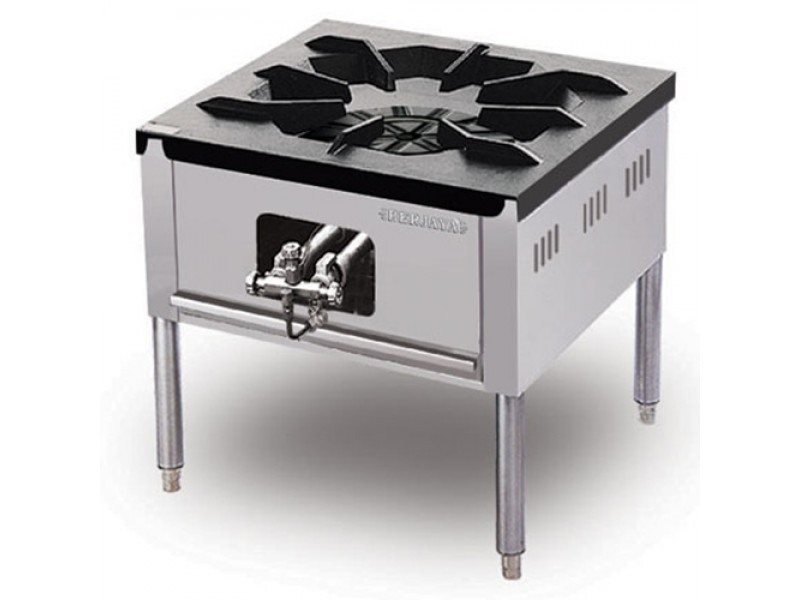

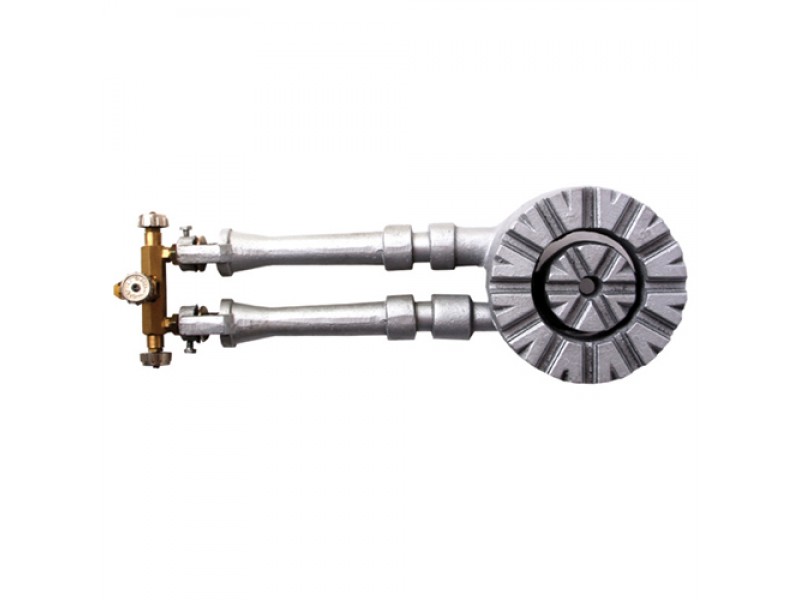

| SP 1-HP | 600 x 600 x 520 | 655 x 750 x 350 | 37 | 57,000 (60) | HIGH | Pipeapple |

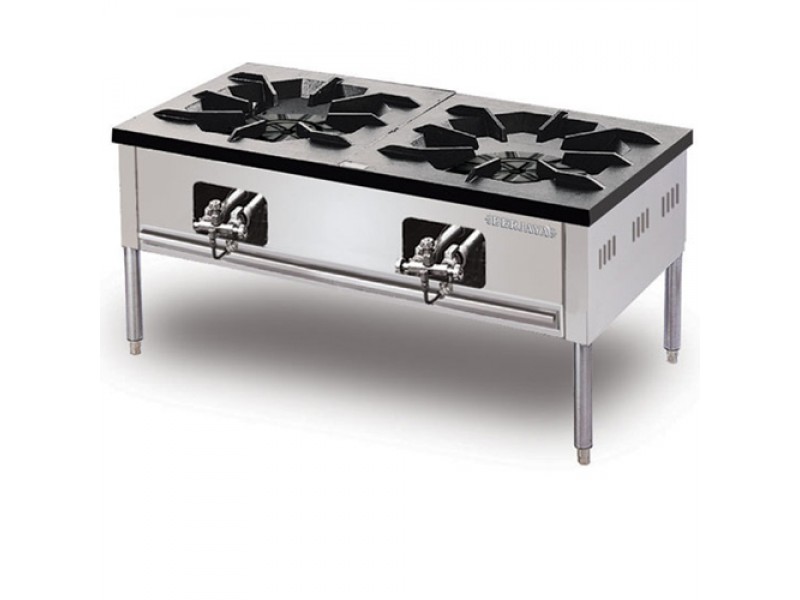

| SP 2-HP | 1200 x 600 x 520 | 1220 x 750 x 350 | 71 | 114,000 (120.8) | HIGH | Pipeapple |

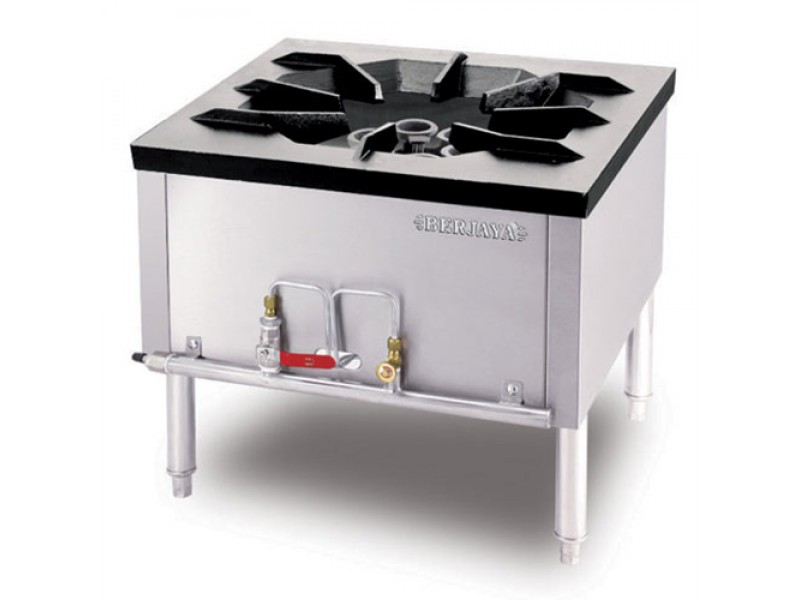

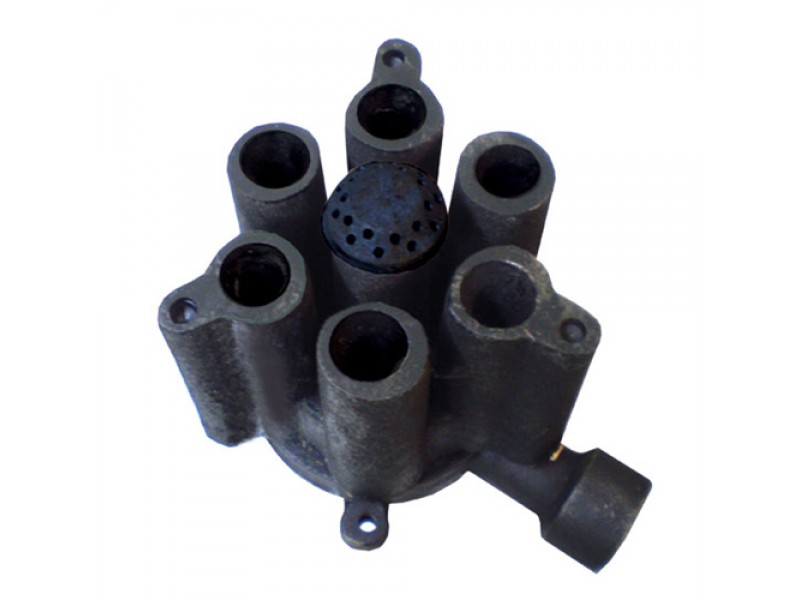

| SP 1-HT | 600 x 600 x 520 | 655 x 750 x 350 | 35 | 96,000 (101.7) | HIGH | Trumpet |

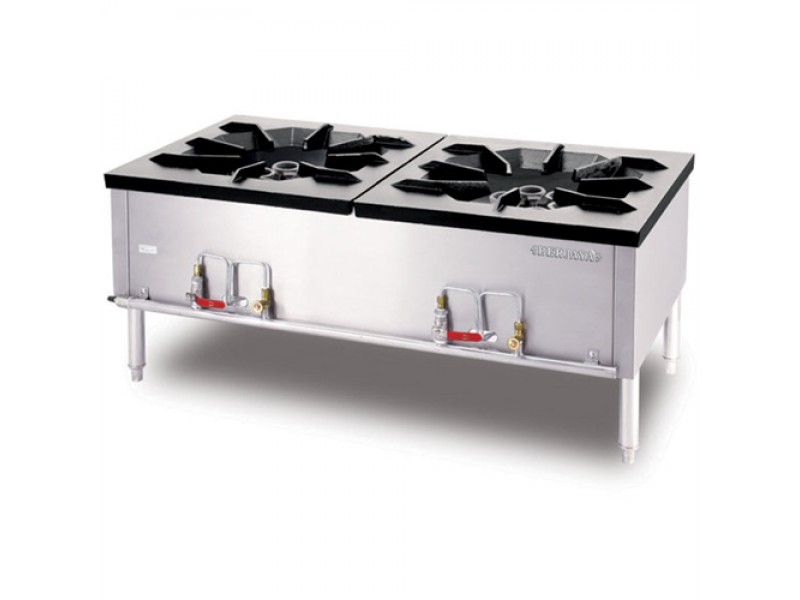

| SP 2-HT | 1200 x 600 x 520 | 1220 x 750 x 350 | 69 | 192,000 (203) | HIGH | Trumpet |
